參數概述/General Specifications
1、材質SUS304, SUS316L;
2、最大工作壓力150Psi;
3、表面拋光處理或拉絲處理。
1、Material:SUS304,SUS316L;
2、Max working pressure 150Psi；
3、Polished or brushing external surface.

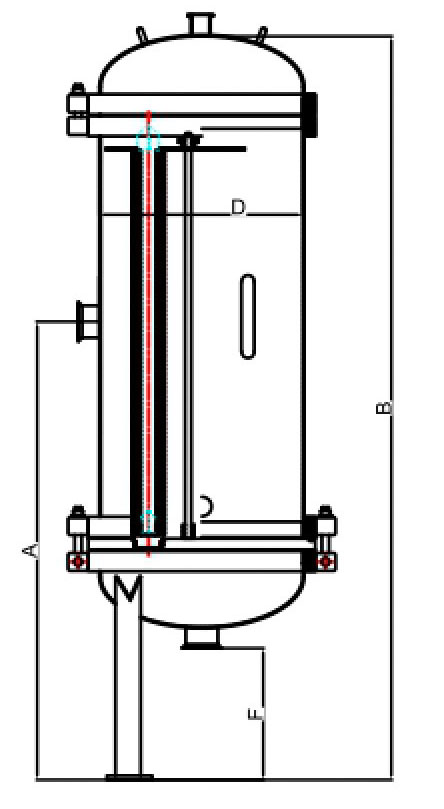

尺寸/Dimension
| 型號/Model | A (mm) | B (mm) | D (mm) | F (mm) | Inlet/Outlet
|
JD5-A-Φ300x10x30" | 800 | 1590 | Φ300 | 200 | 2"-3" |
JD5-A-Φ300x10x40" | 800 | 1845 | Φ300 | 200 | 2"-3" |
JD5-A-Φ350x12x30" | 800 | 1615 | Φ350 | 200 | 2"-3" |
JD5-A-Φ350x12x40" | 800 | 1870 | Φ350 | 200 | 2"-3" |
JD5-A-Φ400x16x30" | 800 | 1640 | Φ400 | 200 | 2"-3" |
JD5-A-Φ400x16x40" | 800 | 1895 | Φ450 | 200 | 2"-3" |
JD5-A-Φ450x20x30" | 800 | 1665 | Φ450 | 200 | 2"-3" |
JD5-A-Φ450x20x40" | 800 | 1920 | Φ450 | 200 | 2"-3" |
JD5-A-Φ500x22x30" | 800 | 1690 | Φ500 | 200 | 2"-3" |
JD5-A-Φ500x22x40" | 800 | 1945 | Φ500 | 200 | 2"-3" |
