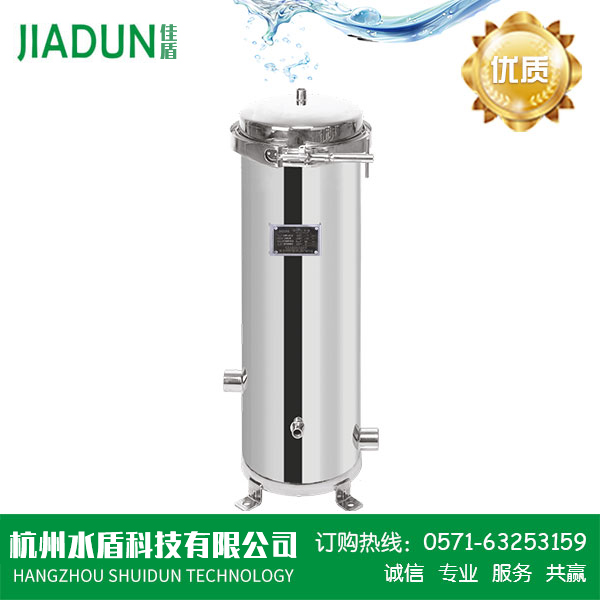

參數概述/General Specifications
1、材質SUS304, SUS316L;
2、最大工作壓力100Psi;
3、平底、平壓、抱箍式；或帶鋼琬插件、
4、表面拋光處理或。
1、Material:SUS304,SUS316L;
2、Max working pressure 100Psi;
3、V-clamp closure; or with SS cup and spring assembly
4、Polished external surface.

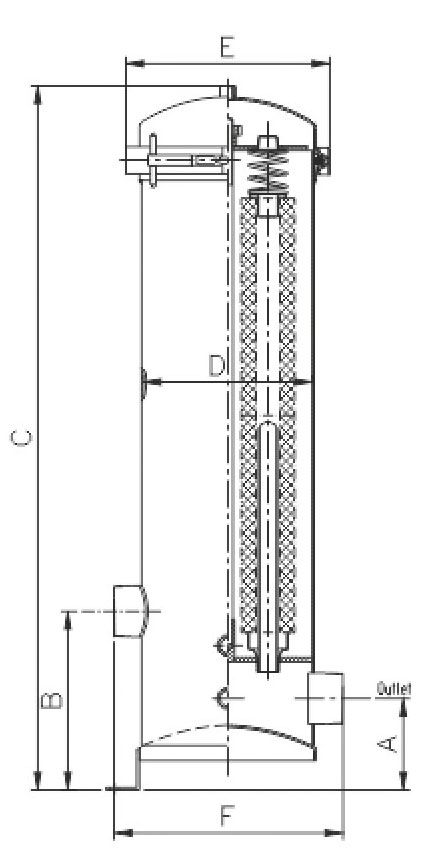

尺寸/Dimension
型號/Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Inlet/ Outlet | Drain |
JD1-Φ170x3X10" | 75 | 180 | 505 | Φ170 | Φ216 | 230 | 1";-1 1/2" | 1/4";1/2" |
JD1-Φ170x3X20" | 75 | 180 | 800 | Φ170 | Φ216 | 230 | 1";-1 1/2" | 1/4";1/2" |
JD1-Φ170x3X30" | 75 | 180 | 1050 | Φ170 | Φ216 | 230 | 1" ; -2" | 1/4";1/2" |
JD1-Φ200x 5X10" | 75 | 180 | 560 | Φ200 | Φ248 | 260 | 1”;-1 1/2” | 1/4";1/2" |
JD1-Φ200x 5X20" | 75 | 180 | 810 | Φ200 | Φ248 | 260 | 1”;-1 1/2” | 1/4";1/2” |
JD1-Φ200x 5X30" | 75 | 180 | 1060 | Φ200 | Φ248 | 260 | 1" ；-2" | 1/4";1/2" |
JD1-Φ200x 5X40" | 120 | 220 | 1360 | Φ200 | Φ248 | 260 | 1" ；-2" | 1/4";1/2" |
JD1-Φ250x 7X10" | 120 | 220 | 620 | Φ250 | Φ310 | 310 | 1 1/2”;-2” | 1/2" |
JD1-Φ250x 7X20" | 120 | 220 | 870 | Φ250 | Φ310 | 310 | 1 1/2”;-2” | 1/2" |
JD1-Φ250x 7X30" | 120 | 220 | 1120 | Φ250 | Φ310 | 310 | 1 1/2”;-2 1/2” | 1/2" |
JD1-Φ250x 7X40" | 120 | 220 | 1370 | Φ250 | Φ310 | 310 | 1 1/2”;-2 1/2” | 1/2" |
