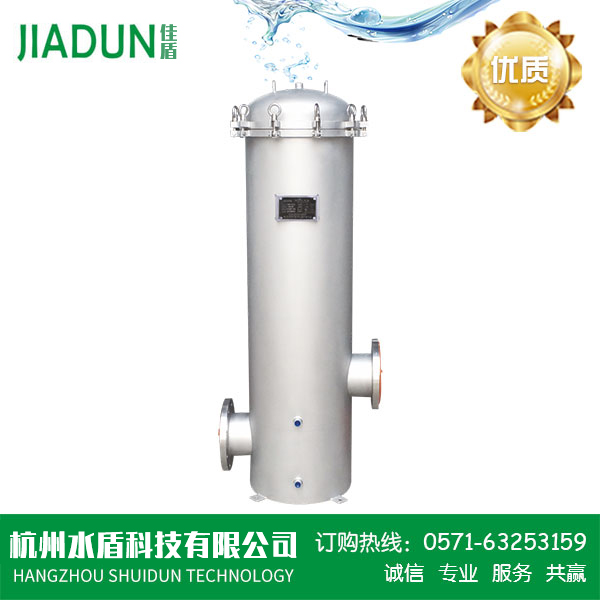

參數概述/General Specifications
1、材質SUS304, SUS316L;
2、最大工作壓力150Psi;
3、快裝法蘭；不帶腿、平壓、或帶鋼碗插件；
4、表面拋光處理或亞光處理。
1、Material:SUS304,SUS316L;
2、Max working pressure 150Psi;
3、Quickly Flange Type,Without legs, With SS cup or not;
4、Polished or sandblast external surface.

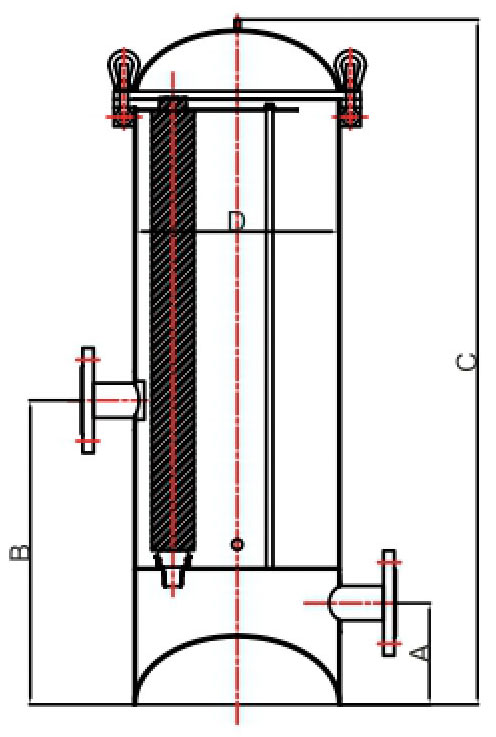

尺寸/Dimension
型號/Model | A (mm) | B (mm) | C (mm) | D (mm) | Inlet/ Outlet | Drain |
JD1-B-Φ 170x3X10" | 75 | 180 | 510 | Φ170 | 1", 1 1/2" | 1/4" |
JD1-B-Φ 170x3X20" | 75 | 180 | 760 | Φ170 | 1", 1 1/2" | 1/4" |
JD1-B-Φ 170x3X30" | 75 | 350 | 1015 | Φ170 | 1", 1 1/2" | 1/4" |
JD1-B-Φ 170x3X40" | 75 | 350 | 1270 | Φ170 | 1", 1 1/2" | 1/4" |
JD1-B-Φ 200x 5X20" | 75 | 180 | 780 | Φ200 | 1" ; 2" | 1/2" |
JD1-B-Φ 200x 5X30" | 75 | 350 | 1035 | Φ200 | 1" ; 2" | 1/2" |
JD1-B-Φ 200x 5X40" | 75 | 350 | 1290 | Φ250 | 1" ; 2" | 1/2" |
JD1-B-Φ250x 7X20" | 120 | 180 | 840 | Φ250 | 1" ; 2" | 1/2" |
JD1-B-Φ250x 7X30" | 120 | 350 | 1100 | Φ250 | 1",2 1/2" | 1/2" |
JD1-B-Φ250x 7X40" | 120 | 350 | 1350 | Φ250 | 1",2 1/2" | 1/2" |
JD1-B-Φ300x 9X30" | 150 | 350 | 1135 | Φ300 | 1",2 1/2" | 1/2" |
JD1-B-Φ300x 9X40" | 150 | 350 | 1390 | Φ300 | 1",2 1/2" | 1/2" |
JD1-B-Φ350x 15X30" | 150 | 350 | 1150 | Φ350 | 1",2 1/2" | 3/4" |
JD1-B-Φ350x 15X40" | 150 | 350 | 1405 | Φ350 | 1",2 1/2" | 3/4" |
